Offset ink dosing systems

We design and manufacture automatic and semi-automatic dispensers for color production.

3 sizes in dosing systems for Conventional, UV and UV-LED Offset ink

Find the perfect DOSAT.

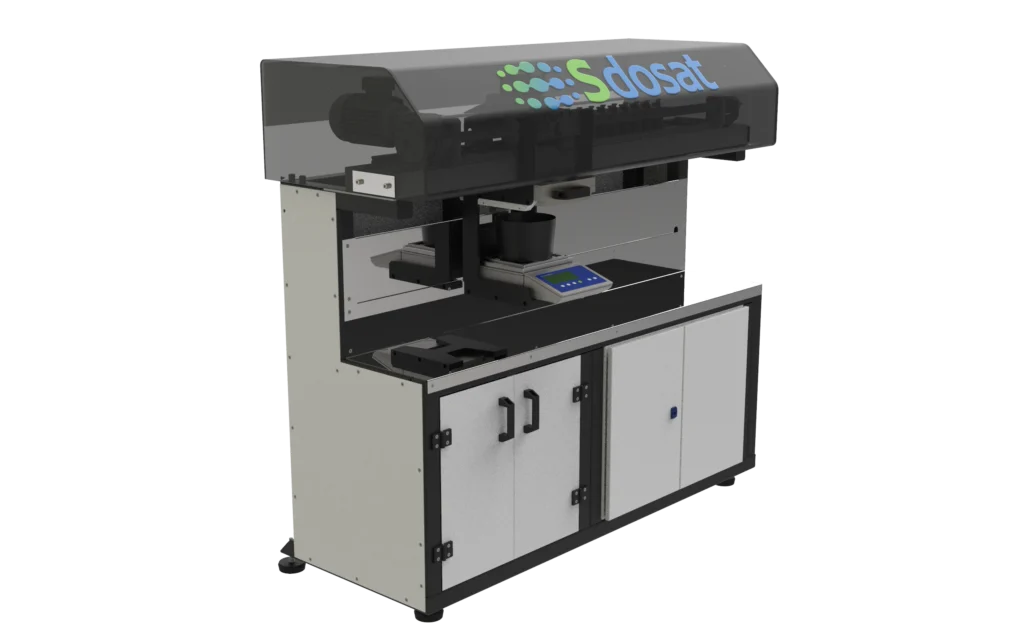

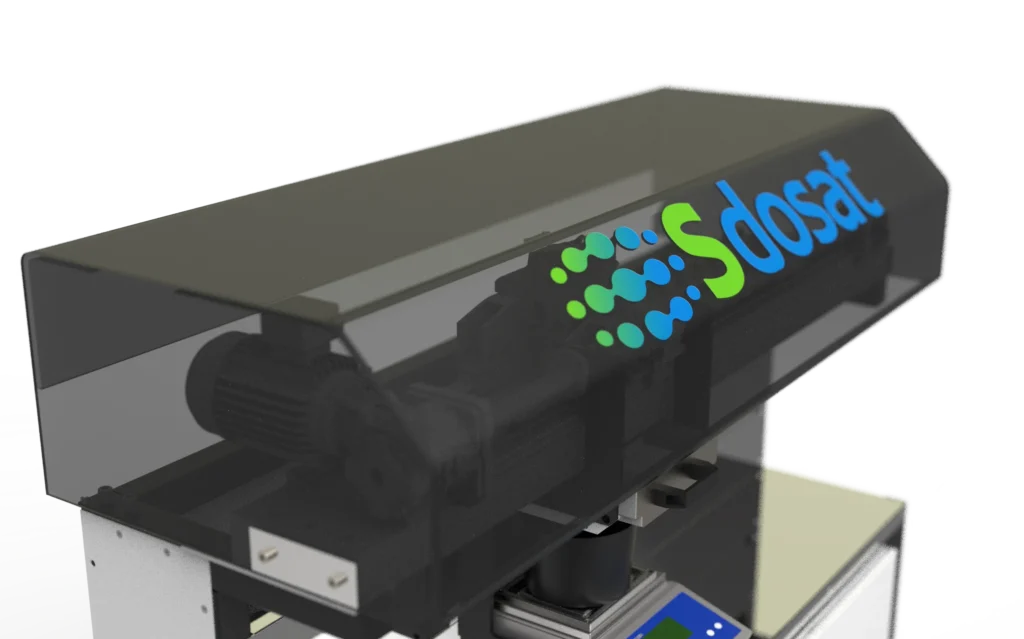

SDOSAT

Type of dosing machine

  • SDOSAT - For conventional, UV and UV-LED Offset ink

Description

This product is intended for users who, because of their work, need to formulate products in batches up to 6kg, which contain many components and require the exact color to be always obtained. The SDOSAT small ink kitchen facilitates repetitive dosing, automatically and without losing the traceability of the colors made. This dispenser is specially designed for label printers, packaging, luxury, cosmetics, food and many more who need to produce small batches of special colors.

SDOSAT Features

  • The maximum number of base components in automatic is 12.
  • 2-stage dosing valves.
  • Weighing scale up to 6 kg, with accuracy from 0.1 g.
  • Direct suction from ink manufacturer's containers.
  • Fully configurable machine layout.
  • Dimensioning of pumping equipment, designed by E21, according to your needs.
  • Traceability, repeatability and automation of the whole process.

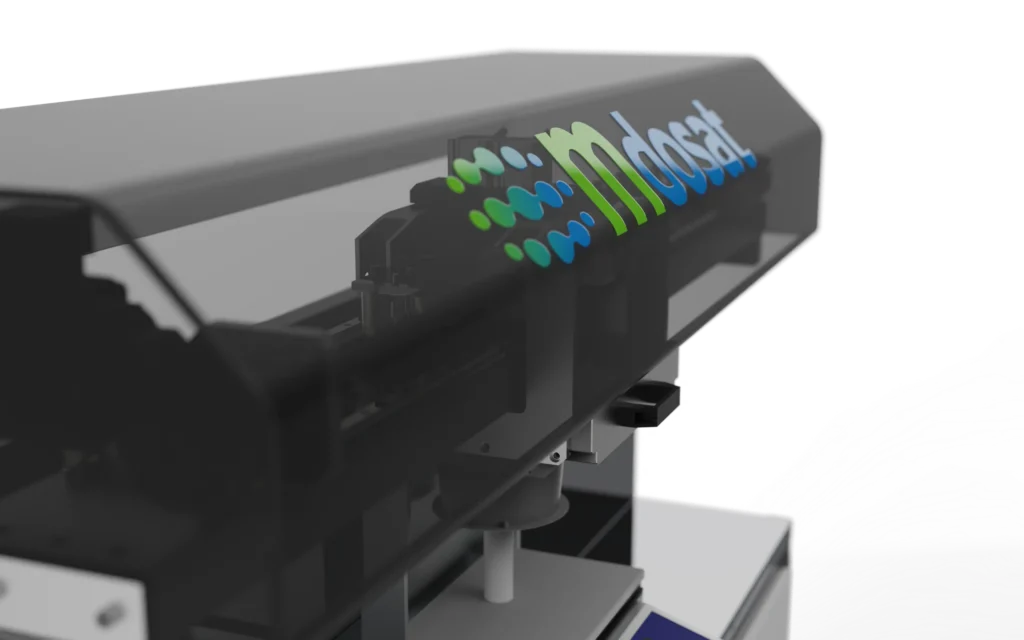

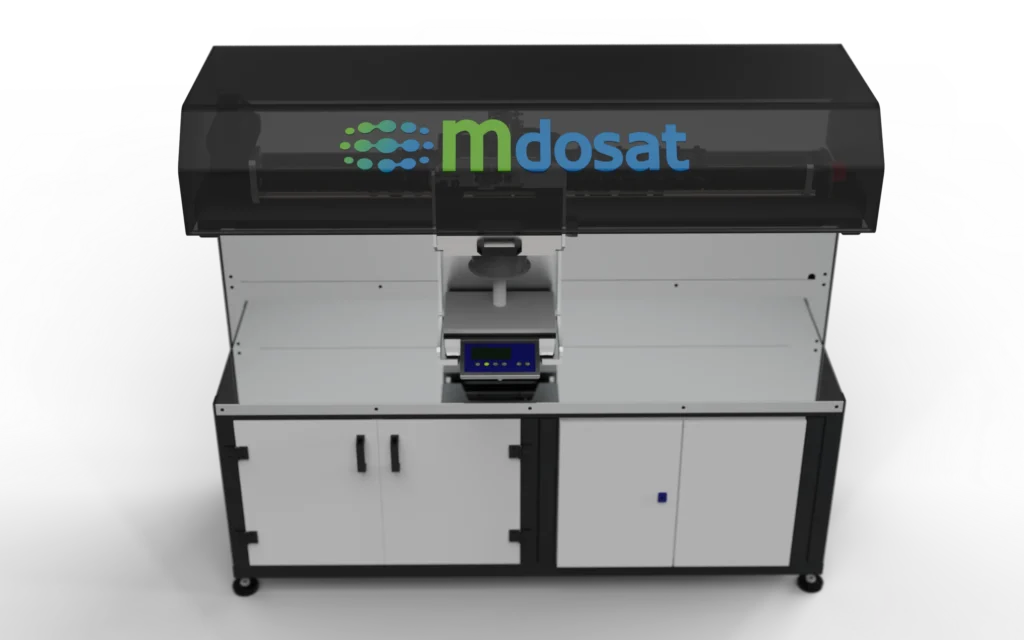

MDOSAT

Type of dosing machine

  • MDOSAT - For conventional, UV and UV-LED Offset ink

Description

This product is designed for users who, due to their work, have to formulate products in quantities of up to 35kg, with a lot of components and require the exact color to be reproduced at all times. The MDOSAT medium dispensing system ensures that repetitive dosages are made accurately, automatically and without losing the traceability of the colors made. This ink kitchen is particularly recommended for label printers, packaging, luxury, cosmetics, food, ink distributors and many more needing to produce mid-size lots of formulated colors.

MDOSAT Features​

  • The maximum number of basic components in automatic is 16 (24 in special version).
  • 2-stage dosing valves.
  • Weighing scale up to 35 kg, with an accuracy from 1 g (optional 0.1 g).
  • Aspiration directly from ink manufacturer's containers.
  • Completely customizable system layout.
  • Dimensioning of pumping equipment, designed by E21, according to your needs.
  • Traceability, repeatability and automation of the whole process.

MDOSAT Specifications

  • Compatible with Conventional, UV and UV-LED Offset inks.
  • Viscosity up to 200 000 mPas.
  • Dosage containers: cups, bottles, jars and bags.
  • Dosing time: 5 minutes (25 kg, 3 components).
  • Accuracy of 1 gram, optionally 0.1 gram.

Supplies

  • 6-8 bar pneumatic pressure.
  • 240V (380V depending on configuration).
  • Network connection.

LDOSAT

Type of dosing machine

  • LDOSAT - For conventional, UV and UV-LED Offset ink

Description

This system is destined to users that need to formulate products in batches of up to 300kg, where many components are present, and that must always obtain the same exact color. The large LDOSAT dispenser allows repetitive dosing, automatically and without losing the traceability of the colors made. It also has multiple automation configurations, so you don’t have to worry about mechanical processes. This ink dispenser is specially designed for label printers, packaging, luxury, cosmetics, food, ink distributors, ink manufacturers and many more who need to produce large batches with a high degree of performance of special inks.

LDOSAT Features

  • The maximum number of base components in automatic is 24 (32 in special version).
  • Two-stage dosing valves.
  • It has a double scale. One up to 60 kg, with precision from 1 g (optional 0.1 g), and another one of 300 kg with precision 5 g.
  • Direct aspiration from ink manufacturer's containers.
  • Totally configurable machine distribution.
  • Dimensioning of pumping equipment, designed by E21, according to your needs.
  • Traceability, repeatability and automation of the whole process.

Contact us

Contact us, we will be happy to process your request.
